  1. R
  2. R
  3. R
    • 1/R  =   1/R1+1/R2
    • R  =   U / I
  1. R1
  2. R1
  3. R1
    • 1/R1  =   1/R-1/R2
    • R1  =   U/I1
  1. R2
  2. R2
  3. R2
    • 1/R2  =   1/R-1/R1
    • R2  =   U/I2
  1. I
  2. I
  3. I
    • I  =   I1+I2
    • I  =   U / R
  1. I1
  2. I1
  3. I1
    • I1  =   I-I2
    • I1  =   U / R1
  1. I2
  2. I2
  3. I2
    • I2  =   I-I1
    • I2  =   U / R2
  1. U
  2. U
  3. U
    • U  =   R·I
    • U  =   R1·I1
    • U  =   R2·I2

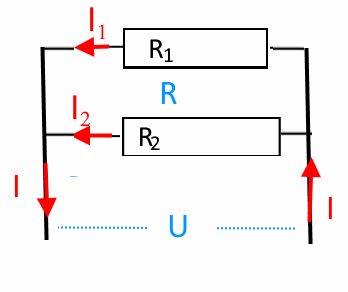

: Parallel resistors, equivalent resistance
