The representation of organic molecules

Example

Ethanol (ethyl alcool, spirits of wine, spiritus e vino)

The molecular model based on spheres

HCl gaz

The persective drawing (the displayed formula)

HCl gaz

The Newman formula

HCl gaz

The structural (line-bond) formula

HCl gaz

The condensed formula

HCl gaz

The skeletal (line-angle, bond-line) formula

HCl gaz

The molecular formula

C2H6O

Comment

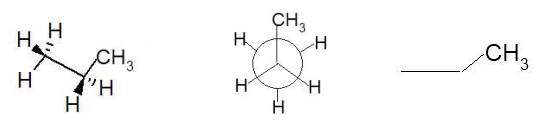

Sometimes several representation modes are mixed together, for example in the composite formulas of propane:

propane-3images
